Design of a Temperature Detection Device Using Thermistor

Aim

To design a temperature measurement system using a thermistor:

To interface the thermistor through a bridge circuit and differential amplifier for signal conditioning.
To use an ESP32esp32A low-cost, low-power system-on-a-chip microcontroller with integrated Wi-Fi and Bluetooth capabilities, widely used by students and engineers for IoT applications and sensor data acquisition. microcontroller to convert bridge voltage to temperature using a linear calibration relation.
To display the measured temperature on an LCD module.

Apparatus & Software

Component	Quantity
Thermistor Sensor	1
Resistor (270 Ω)	1
Resistor (2.2 kΩ)	2
Resistor (4.7 kΩ)	2
Resistor (100 kΩ)	1
Resistor (300 kΩ)	1
DC Power Supply	2
Connecting Wires	As required
Operational Amplifier (Op-Amp)	1
ESP32 Microcontroller	1
LCD Display	1
Display Driver / Interface IC (I2C)	1

Theory

A thermistor is a type of temperature sensor whose resistance changes significantly with temperature. Thermistors are made from semiconductor materials such as metal oxides (e.g., manganese) which have a higher sensitivity to change in temperature. Thermistors are mainly used for precise temperature measurement and control in circuits.

Thermistors are mainly of two types — Negative Temperature Coefficient (NTC) and Positive Temperature Coefficient (PTC). NTC thermistor resistance decreases with an increase in temperature, which makes them suitable for sensing and control applications. PTC thermistor resistance increases with temperature and is mainly used for protection and limiting purposes.

The relationship between resistance and temperature for a thermistor is given by the Steinhart–Hart equation:

\frac{1}{T} = A + B\ln(R) + C[\ln(R)]^3

where T is the absolute temperature in kelvin, R is the resistance of the thermistor, and A, B, and C are coefficients determined experimentally. For practical applications within a general temperature range, the equation can be simplified as:

R(T) = R_0 \, e^{\beta\left(\frac{1}{T} - \frac{1}{T_0}\right)}

where R₀ is the resistance at reference temperature T₀, and β is a material-dependent constant.

To detect small variations in resistance, the thermistor is connected in a Wheatstone bridge circuit. The change in resistance is converted into a voltage difference which is proportional to the temperature and serves as the input for further signal conditioning.

The bridge output is then sent through a differential amplifier to provide attenuation and signal stability. The attenuation ensures that the voltage remains within the input voltage range of the ESP32's ADC, preventing distortion or damage to the microcontroller.

The conditioned signal is then supplied to the ESP32, which processes the analog input using its ADC. A linear calibration relation, obtained from the previous experiment, is used to convert the bridge voltage into the corresponding temperature. The computed temperature is displayed on an LCD module through an I2C interface.

Pre-Lab / Circuit Diagram

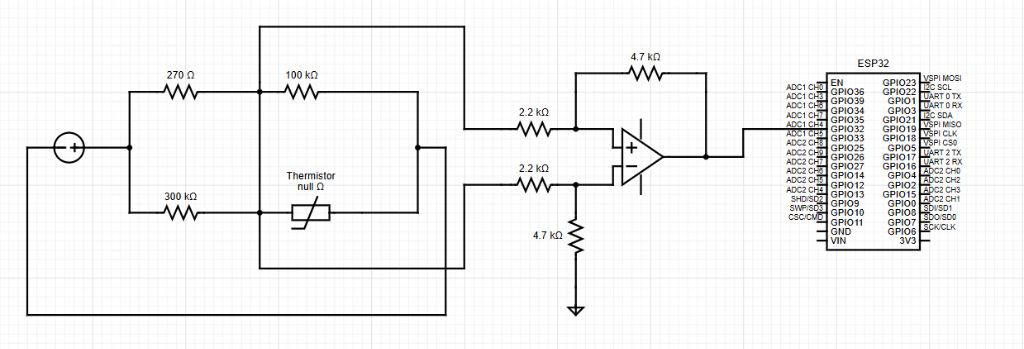

Circuit diagram showing the thermistor Wheatstone bridge, differential amplifier, and ESP32 with LCD display via I2C.

Figure 1: Circuit diagram showing the thermistor Wheatstone bridge (270 Ω, 100 kΩ, 300 kΩ), differential amplifier (R1 = 4.7 kΩ, R2 = 2.2 kΩ), and ESP32 microcontroller with LCD display via I2C interface.

Procedure

Part 1 — Circuit Assembly:

Connect the thermistor as one arm of the Wheatstone bridge using 270 Ω, 100 kΩ, and 300 kΩ resistors for the remaining arms.
Connect the bridge output to the differential amplifier configured with R1 = 4.7 kΩ and R2 = 2.2 kΩ to attenuate the bridge voltage within the ESP32 ADC range.
Connect the amplifier output to the ADC input pin of the ESP32 microcontroller.
Connect the LCD module to the ESP32 via the I2C interface (Display Driver IC).
Power the bridge circuit and op-amp with the DC power supply.

Part 2 — Calibration and Programming:

Use the linear calibration relation T(°C) = −48.68 · Vbridge + 134.9 derived from the previous experiment.
Incorporate the amplifier gain (Gain = R2/R1 = 2.2/4.7 ≈ 0.468) to relate ADC voltage to temperature: T(°C) = −104.017 · VADC + 134.9.
Program the ESP32 with this conversion equation.
Verify the displayed temperature matches a reference thermometer.

Part 3 — Measurement:

Gradually heat the thermistor in the water bath from 35°C to 70°C.
Record the bridge voltage and the measured temperature displayed on the LCD at each step.
Compare the displayed measured temperature with the actual reference temperature.
Calculate the absolute and percentage errors for each reading.

Simulation / Execution (Not Applicable)

This section is not required for this experiment.

Observations

As the thermistor was gradually heated, the corresponding bridge voltage was processed by the ESP32, converted to temperature using the calibrated equation, and displayed on the LCD module.

Calibration Data (From Previous Experiment) — Table 1: Bridge Voltage (VAB) vs Temperature

S. No.	Temperature (°C)	Bridge Voltage VAB (V)
1	25.00	2.258
2	28.33	2.200
3	30.56	2.180
4	33.33	2.137
5	36.11	2.098
6	38.89	2.089
7	41.67	2.017
8	44.44	1.980
9	47.22	1.869
10	50.00	1.738
11	52.78	1.693
12	55.56	1.616
13	58.33	1.543
14	61.11	1.464
15	63.89	1.459

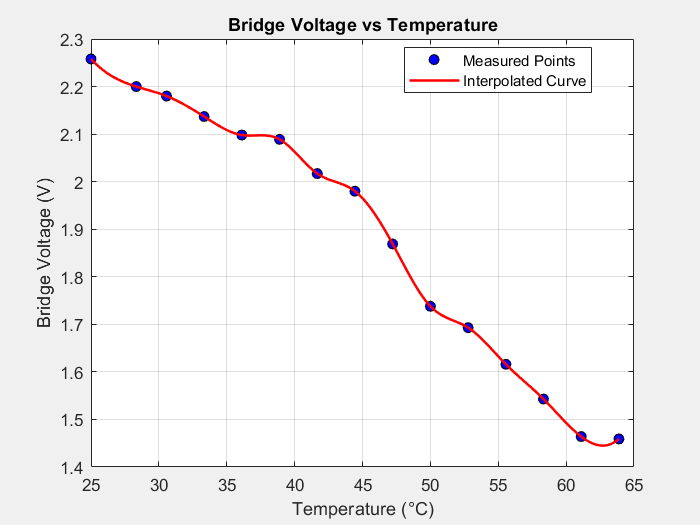

Figure 2: Bridge Voltage (VAB) vs Temperature — plotted using MATLAB from calibration data. Note the decreasing trend, characteristic of the NTC thermistor.

Table 2: Actual vs Measured Temperature and Bridge Voltage (Live ESP32 Readings)

Actual Temp (°C)	Measured Temp (°C)	Bridge Voltage (V)
35	35.88	2.033
38	39.69	1.955
41	42.96	1.894
44	45.18	1.845
47	48.42	1.776
50	52.57	1.693
53	54.18	1.657
57	58.26	1.574
60	62.82	1.479
63	65.70	1.421
66	69.24	1.353
69	72.53	1.290
70	73.85	1.255

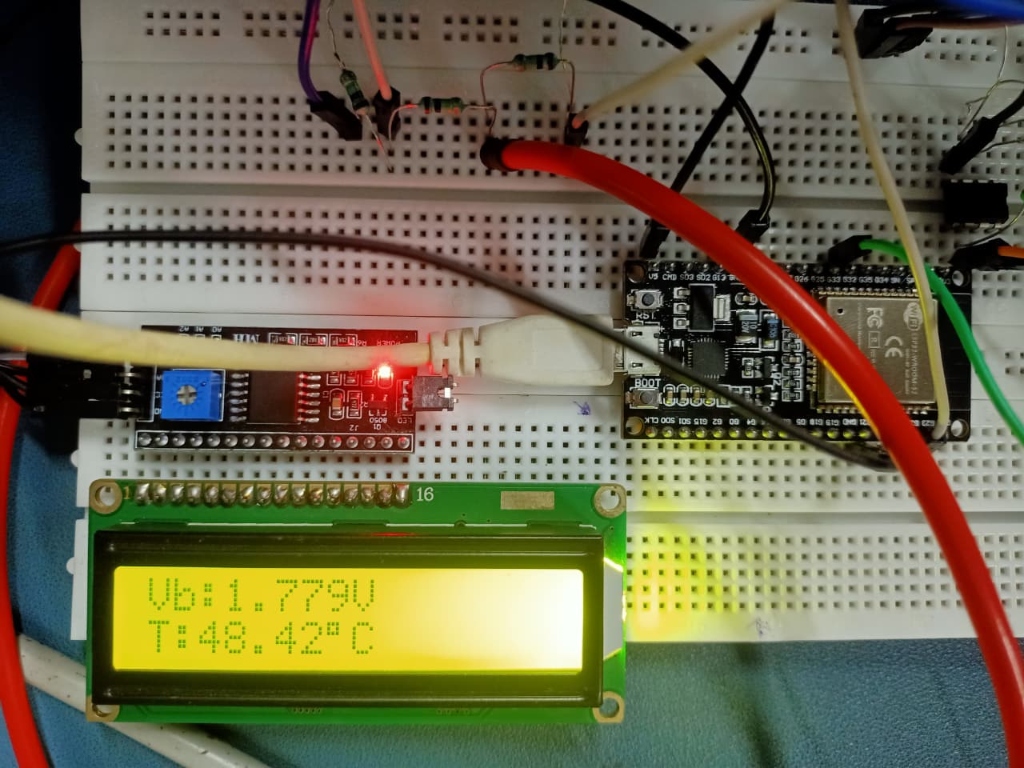

Figure 3(a): LCD display reading showing bridge voltage and corresponding temperature value (Vb: 1.776V T: 48.42C).

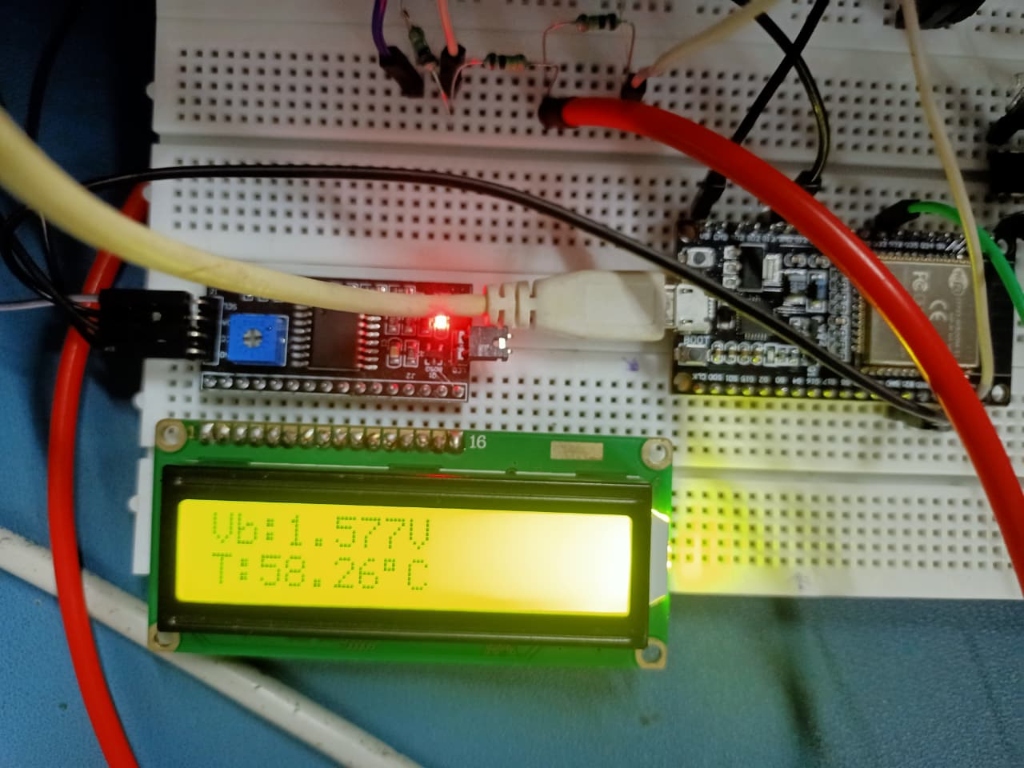

Figure 3(b): LCD display reading showing bridge voltage and corresponding temperature value (Vb: 1.574V T: 58.26C).

Table 3: Error Analysis — Absolute and Percentage Errors

Actual Temp (°C)	Measured Temp (°C)	Absolute Error (°C)	Percentage Error (%)
35	35.88	0.88	2.51
38	39.69	1.69	4.45
41	42.96	1.96	4.78
44	45.18	1.18	2.68
47	48.42	1.42	3.02
50	52.57	2.57	5.14
53	54.18	1.18	2.23
57	58.26	1.26	2.21
60	62.82	2.82	4.70
63	65.70	2.70	4.29
66	69.24	3.24	4.91
69	72.53	3.53	5.12
70	73.85	3.85	5.50

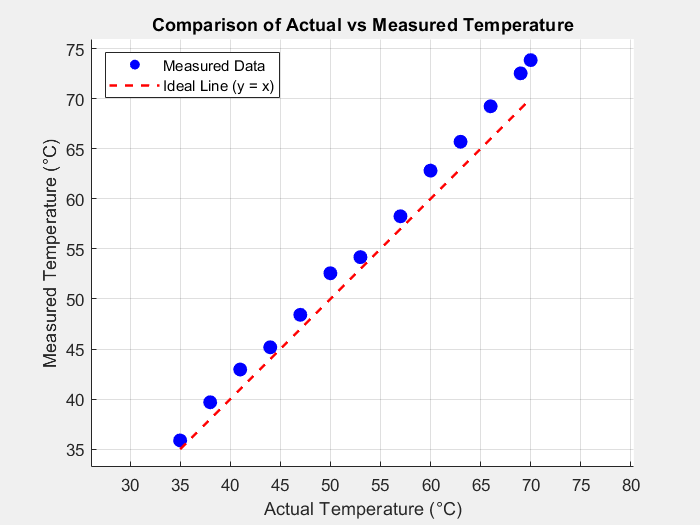

Figure 4: Actual Temperature vs Measured Temperature for Thermistor system. Measured points track above the ideal line (y = x), indicating a consistent positive offset.

Calculations

A linear regression was applied to the calibration data to determine the relationship between bridge voltage and temperature. The linear relation is expressed as:

T(^\circ\text{C}) = m \cdot V_{\text{bridge}} + c

Slope m and intercept c are calculated from the calibration data endpoints:

m = \frac{\Delta T}{\Delta V} = \frac{63.89 - 25.00}{1.459 - 2.258} \approx -48.68

c = T - m \cdot V = 25.00 - (-48.68 \times 2.258) = 25.00 + 109.9 \approx 134.9

Thus, the final linear calibration equation used in the ESP32 program is:

T(^\circ\text{C}) = -48.68 \cdot V_{\text{bridge}} + 134.9

Since the differential amplifier attenuates the bridge voltage before feeding it to the ESP32 ADC, the measured ADC voltage VADC is related to the actual bridge voltage by the amplifier gain:

V_{\text{bridge}} = \frac{V_{\text{ADC}}}{\text{Gain}}, \quad \text{where Gain} = \frac{R_2}{R_1} = \frac{2.2\,\text{k}\Omega}{4.7\,\text{k}\Omega} \approx 0.468

Substituting into the calibration equation, the temperature corresponding to a measured ADC voltage is:

T(^\circ\text{C}) = -48.68 \cdot \frac{V_{\text{ADC}}}{0.468} + 134.9 = -104.017 \cdot V_{\text{ADC}} + 134.9

Sample Error Calculation (at 35°C):

\Delta T = T_{\text{measured}} - T_{\text{actual}} = 35.88 - 35.00 = 0.88^\circ\text{C}

\text{Relative Error} = \frac{\Delta T}{T_{\text{actual}}} = \frac{0.88}{35.00} = 0.02514

\text{Percentage Error} = 0.02514 \times 100 = 2.51\%

Results & Analysis

The linear calibration equation T(°C) = −48.68 · Vbridge + 134.9 was successfully programmed into the ESP32. The negative slope reflects the NTC thermistor's characteristic of decreasing resistance (and thus decreasing bridge voltage) with increasing temperature.
After accounting for the differential amplifier attenuation (Gain ≈ 0.468), the final ADC-to-temperature equation is T(°C) = −104.017 · VADC + 134.9.
Measured temperatures were consistently higher than actual values across the range of 35°C to 70°C, with positive offsets visible in all readings.
Percentage errors ranged from 2.21% to 5.50%, with the maximum error at 70°C.
Errors were larger than those observed in the RTD-based system (Exp5), consistent with the thermistor's inherently non-linear response being approximated by a linear equation.
The LCD module successfully displayed real-time bridge voltage and computed temperature values.

Conclusion

In this experiment, a temperature measurement system was successfully implemented using a thermistor connected in a bridge circuit. The bridge voltage was attenuated using a differential amplifier to ensure it remains within the measurable range of the ESP32 microcontroller. The ESP32 was connected to an LCD module to display the temperature readings. A linear relation between the bridge voltage and temperature, obtained from the previous experiment, was used to convert the measured voltage into corresponding temperature values. This equation was programmed into the ESP32 to calculate and display temperature directly from the bridge output. Small deviations were observed and these errors can be attributed to factors such as ADC resolution limits, amplifier gain tolerances, and minor fluctuations in the thermistor response due to heating conditions. Overall, the experiment successfully validated the accuracy and effectiveness of the thermistor-based temperature measurement system.
